How to Choose and Install the Right Garage Door Weather Seal

A well-installed garage door weather seal keeps dust, water, pests, and outside air from slipping into a garage. For contractors across Santa Ana, CA, choosing the right seal matters because local weather, coastal moisture, and temperature swings can affect how well a seal performs. When you install the right seal, your clients notice the difference right away—cleaner floors, tighter insulation, and a door that looks and feels professionally finished. If you work with residential garage door parts every day, you already know how much a good seal impacts long-term door performance.

So how do you select the right seal and install it the right way? In this guide, our pros from Garage Door Dimension break down seal types, sizing rules, and installation steps for different door styles so you can complete each job with confidence.

Why Contractors Need the Right Garage Door Weather Seal

Contractors often deal with garages that leak air, let in light, or pull in dust during Santa Ana’s seasonal winds. These issues usually point to worn or undersized seals. A new garage door weather seal helps solve these problems with a simple, reliable fix. When the fit is right, the seal closes small gaps, protects the interior, and keeps the door operating smoothly.

A solid seal also prevents callbacks. Many homeowners complain about uneven garage floors, gaps at the corners, or old seals that peel after a few months. By choosing the right garage door seal material and profile, you can prevent these issues and deliver better long-term results.

Now that you understand why the right seal matters, let’s look at the different seal types available.

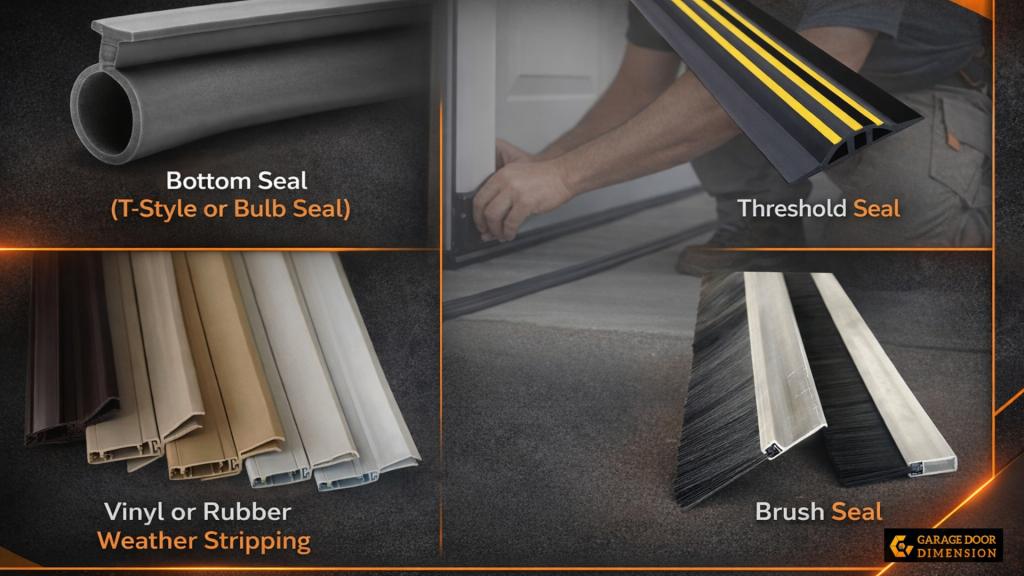

Types of Garage Door Weather Seal (and When to Use Each)

Before you install or replace a seal, you must know which type works best for the door and the floor conditions. Contractors in Santa Ana deal with everything from sloped driveways in Floral Park to uneven concrete near Bristol Street, so seal choice matters.

Here are the most common types:

Bottom Seal (T-Style or Bulb Seal)

This is the most common garage door bottom seal. It fills floor gaps and works well on doors with standard channels.

Threshold Seal

Installed on the floor instead of the door. Great when the concrete is uneven or when extra moisture protection is needed.

Brush Seal

Used on the sides or top. It keeps dust, insects, and wind out while allowing the door to move freely.

Vinyl or Rubber Weather Stripping

Installed along the top and sides of the door frame. It improves insulation and reduces light gaps.

These different seals give you plenty of options to solve specific issues. Once you understand seal types, the next step is choosing the right size for the door.

How to Select the Correct Seal Size for Each Job

Sizing is one of the most common mistakes in garage door weather seal replacement. A seal that’s too small leaves gaps; a seal that’s too large creates drag and strains the opener. Contractors can avoid these problems with a simple sizing process.

1. Measure the Retainer Width: Most bottom retainers are either 3/8”, 1/4”, or 5/16”. The seal must match the exact track size.
2. Check the Floor Slope: In older Santa Ana neighborhoods like Wilshire Square, slabs often tilt. A taller bulb seal may be needed to compensate.
3. Measure the Door Width: Always cut the seal 1–2 inches longer than the door width for a tight, clean fit.
4. Consider Material Thickness: Thicker seals help with uneven flooring; thinner seals work best for smooth concrete.

Once you choose the correct size, the installation becomes much easier. Now let’s move into the step-by-step process.

How to Install a Garage Door Weather Seal (Bottom Seal)

Many contractors prefer bottom seals because they’re fast to install and offer instant results. Whether you’re working with steel sectional doors near South Coast Plaza or carriage-style doors in West Floral Park, the process follows the same core steps.

1. Remove the Old Seal: Slide the old seal out of the retainer. If it sticks, loosen it with silicone spray.
2. Clean the Retainer: Dust and debris can block the new seal. A quick wipe with a rag or blower gets it ready.
3. Add Lubricant: A small amount of dish soap or silicone spray helps the new seal slide in smoothly.
4. Feed the New Seal Into the Tracks: Work one side at a time. Keep the seal straight to prevent twisting.
5. Center and Trim the Seal: Leave 1 inch of extra material on each side. This helps close corner gaps.

When installed correctly, the seal sits flat against the ground and closes the entire width of the door.

Now that you’ve handled the bottom seal, let’s cover installation methods for other seal types.

Installing Side and Top Garage Door Weather Stripping

Side and top seals help block drafts in windy areas of Santa Ana, especially near open streets or older homes. Contractors prefer these seals because they take only minutes to install and dramatically improve insulation.

Here’s the simple process:

1. Remove the old weather stripping: Pull it away from the frame and scrape old adhesive if needed.
2. Measure and cut each strip: Always leave a snug fit at the corners to prevent air gaps.
3. Nail or screw the seal into place: Keep pressure even and avoid overtightening, which can warp the seal.
4. Test with the door closed: Make sure the seal touches the door without pushing too hard.

With these seals installed, you’ve tightened the enclosure from multiple sides. But what if the concrete itself is causing issues? That’s where threshold seals come in.

When to Use Threshold Seals for Better Results

Threshold seals are popular in Santa Ana because many garages sit slightly below street level. Rainwater, dust, and leaves can roll inside easily. A threshold seal helps solve these problems by creating a raised barrier.

Use a threshold seal when:

• The driveway slopes inward
• The concrete is cracked or uneven
• You need a tighter seal for climate control
• The bottom retainer can’t hold a larger seal

While threshold seals require adhesive curing time, they’re worth the effort in homes close to high-traffic roads where debris blows in often.

Now that we’ve covered installation types, let’s talk about maintenance—something many contractors overlook.

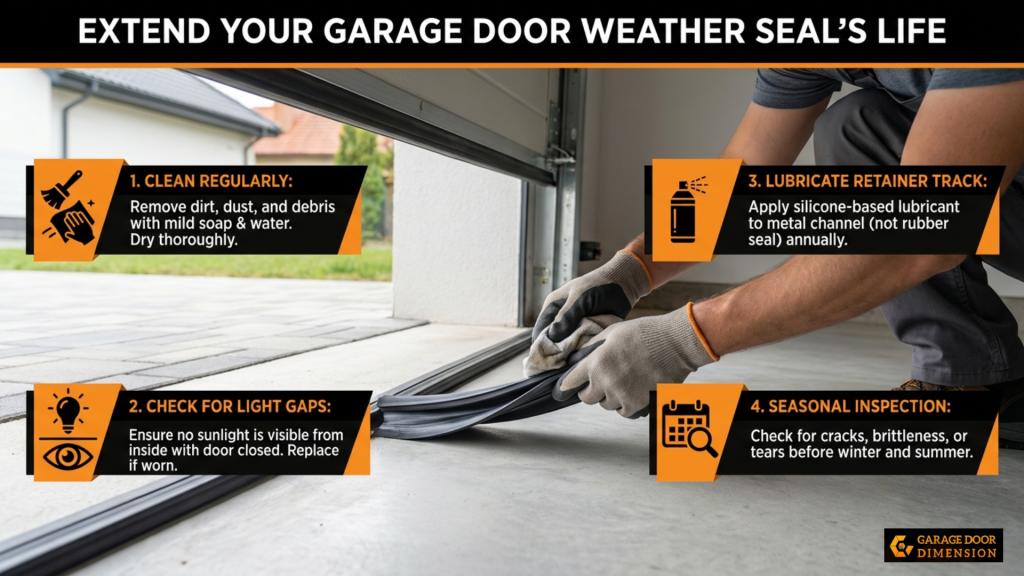

Maintenance Tips to Extend the Life of a Garage Door Weather Seal

Even the best garage door weather seal wears out over time. Heat, cold, and foot traffic all shorten the seal’s lifespan. Contractors can help clients extend seal life with a few simple tips:

• Clean the seal every few months: Dust and dirt cause cracking over time.
• Check for light gaps: If you see light, the seal may be shrinking or hardening.
• Lubricate the retainer: This prevents binding and makes future replacements easier.
• Inspect during seasonal tune-ups: Seal checks pair well with spring and fall maintenance visits.

Proper maintenance leads to fewer callbacks and smoother door operation. As you wrap up your project, you want to offer your clients the best results—and top-quality parts matter.

Where Contractors in Santa Ana Find Quality Weather Seals and Parts

Contractors across Santa Ana rely on suppliers who offer durable, consistent garage door weather stripping and garage door seal replacement parts. Using high-quality materials helps you deliver better results and reduces the chance of failure, especially during hot summers and damp winters.

Whether you need seals for metal, wood, or custom doors, choosing a dependable supplier ensures each job goes smoothly. Now that you know how to choose, size, and install the right seal, let’s close with one final step.
